QD3 Pocket Spring Cutting Machine with Ultrasonic
PRODUCTS

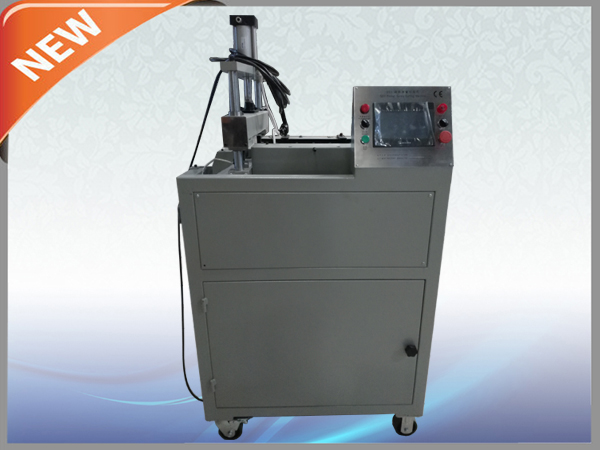

Product Name：QD3 Pocket Spring Cutting Machine with Ultrasonic


Product Characteristic:

1.Adapt to cylindrical and barrel shape pocket springs.

2.Adapt to different heights and diameters pocket springs.

3.Easy for operation and adjustment.

4.With ultrasonic welding function, save materials.

5.Cutting by high speed cylinder.

6.Calculation and detective at the same time.

Technical  Parameter


Pocket spring height

80~260mm

Spring central dia.

Φ40~Φ76mm

Speed

25 times/min

Power supply

1KW

Interval of pocket spring

More than 1pc

Air consumption

3m3/min 0.8MPa

Gross weight

380 kgs

Overall dimension

900*760*1700mm
