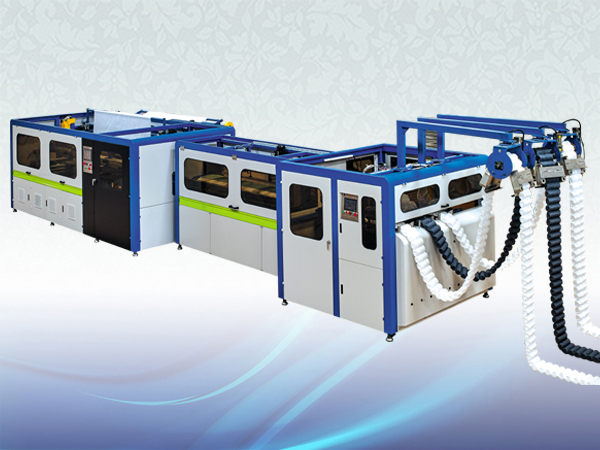

QL-LT-03A Pocket Spring Net Production Line
PRODUCTS



Product Name:QL-LT-03 Pocket Spring Net Production Line

Detail:

Product Characteristic:

1. Adapt to cylindrical and barrel shape springs.

2. The heat-treatment device can adapt to different spring height, easy for  adjustment.

3. The non-woven feeder system,save material and labor.

4. Multiple fault detecting device, effectively reduced the wastage.

5. Special protective device.

6. Each pocket spring coiling machine use two spring coiling heads, which can make zone pocket spring net.

7. Sponge line can be added in the middle of pocket spring nets in automatic or manual. which suitable for  folding and rolling mattress.

Remark: Can use 1pc, 2pcs or 3pcs pocket spring coiling machines according to different requirements.



Technical Parameters:



Non-woven supply

60~100g/m2

Non-woven width

340~690mm

Steel wire dia

1.6~2.2mm

Pocket spring height

120~250mm

Spring central dia

50~75mm

Power supply

50kw/hour

Total power

120kw

Speed

2.5~5min/net

Air consumption

0.5m3/min, 0.8MPa

Gross weight

15000kgs

Space dimension

21000*8000mm
