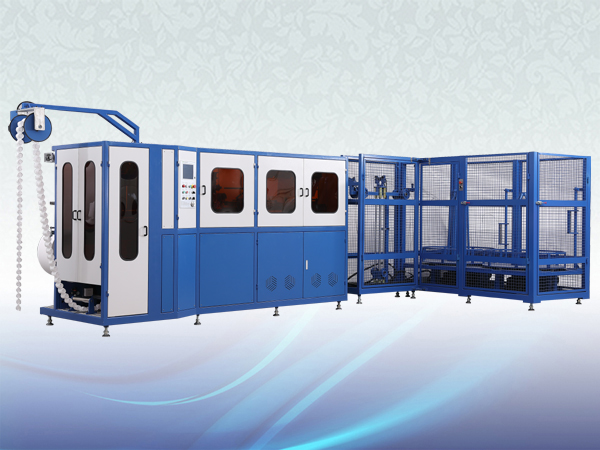

GDZ8S-130DW High Speed Pocket Spring Coiling Machine


Product Characteristic:
1. Adapt to cylindrical and barrel shape springs.
2. The heat-treatment device can adapt to different spring height, easy for adjustment.
3. The non-woven feeder system, save material and labor.
4. Multiple fault detecting device, effectively reduced the wastage.
5. Use full-automatic coiling head.
6. Special protective device.

Technical Parameters:

Efficiency(about):

130pcs/min

Non-Woven Supply:

 60-100g/m2

Pocket Spring Height:

 80-250mm

Wire Dia.:

 Φ1.6-2.3mm

Spring Core Dia.:

 Φ55-72mm

Non-Woven Width:

 360-680mm

Power Supply:

 15KW

Air Requirement:

 0.02m3/min 0.8MPa

Gross Weight:

 3500KG

Overall Dimension:

3700X2500X2100mm
